Blower Motor

  • SPAL Centrifugal Blowers - 24 V - 006-B40-22

    SPAL Centrifugal Blowers - 24 V - 006-B40-22

    006-B40-22
    006
    Product features
    Long Life
    VLL Version  (for OEM applications only)
    3 or 4 Speed resistor
    Standard feature
    Available upon request


    Performance chart
    Static pressure Airflow Current input Airflow Static pressure
    mm H2O m³/h A CFM in H2O
    65,0 0,0 5,2 0,0 2,6
    60,0 430,0 6,6 254,0 2,4
    50,0 560,0 7,8 330,0 2,0
    40,0 700,0 8,9 413,0 1,6
    30,0 820,0 9,8 484,0 1,2
    20,0 920,0 10,5 543,0 0,8
    10,0 1010,0 11,2 596,0 0,4
    0,0 1100,0 12,0 649,0 0,0
    Test voltage 26 V d.c.
    RM0.00
    Quick Find : 2Add to cart
  • SPAL Centrifugal Blowers - 24 V 006-B45-22

    SPAL Centrifugal Blowers - 24 V 006-B45-22

    Centrifugal Blowers - 24 V

    006-B45-22
    006
    Product features
    3 or 4 Speed resistor
    Standard feature
    Available upon request


    Performance chart
    Static pressure Airflow Current input Airflow Static pressure
    mm H2O m³/h A CFM in H2O
    70,0 0,0 4,8 0,0 2,8
    60,0 350,0 6,1 207,0 2,4
    50,0 600,0 8,1 354,0 2,0
    40,0 730,0 9,1 431,0 1,6
    30,0 830,0 9,9 490,0 1,2
    20,0 940,0 10,6 555,0 0,8
    10,0 1050,0 11,6 620,0 0,4
    0,0 1160,0 12,7 684,0 0,0
    Test voltage 26 V d.c.
    RM0.00
    Quick Find : 9SKU : 006-B45-22Add to cart
  • SPAL Centrifugal Blowers - 24 V 009-B40-22

    SPAL Centrifugal Blowers - 24 V 009-B40-22

    Centrifugal Blowers - 24 V

    009-B40-22
    009
    Product features
    Low Noise
    Long Life
    VLL Version  (for OEM applications only)
    3 or 4 Speed resistor
    Standard feature
    Available upon request


    Performance chart
    Static pressure Airflow Current input Airflow Static pressure
    mm H2O m³/h A CFM in H2O
    65,0 0,0 4,6 0,0 2,6
    55,0 230,0 5,4 136,0 2,2
    50,0 470,0 6,7 277,0 2,0
    45,0 580,0 7,5 342,0 1,8
    40,0 650,0 8,0 384,0 1,6
    35,0 710,0 8,4 419,0 1,4
    30,0 770,0 8,8 454,0 1,2
    25,0 820,0 9,2 484,0 1,0
    20,0 870,0 9,5 513,0 0,8
    15,0 930,0 9,9 549,0 0,6
    10,0 980,0 10,2 578,0 0,4
    5,0 1020,0 10,6 602,0 0,2
    0,0 1070,0 11,0 631,0 0,0
    Test voltage 26 V d.c.
    RM0.00
    Quick Find : 8SKU : 009-B40-22Add to cart

Compressor

  • GEA Vehicle compressor FK for bus and train air-conditioning FK40/560 K

    GEA Vehicle compressor FK for bus and train air-conditioning FK40/560 K

    Scope of supply
    Open piston compressor in a light alumininium construction,
    with suction and discharge valves
    Oil pump
    Four cylinder, cylinder arrangement in V
    Seat front bearing flange
    Integrated oil collecting system for the shaft seal, leak oil drain hose design
    Fastening possibility for electromagnetic clutch
    K Design
    Oil charge:
    FK: FUCHS Reniso SP 46
    FKX: FUCHS Reniso Triton SE 55
    Two sight glasses
    Decompression valve
    Inert gas charge
    Accessories
    Capacity regulator 24 V DC
    1 capacity regulator = 50% residual capacity
    Electromagnetic clutch 24 V DC LA 16.028, Ø 153 mm, 2 x SPB, 60 W 1)
    Flywheel:
    Outer diameter: 210 [mm]
    V-belt profile: SPA DIN 7753
    Number of grooves: 3
    Weight: 11.6 [kg] 1)
    Oil sump heater 24 V DC, 80 W
    Thermal protection thermostat (bimetal tracer)
    Intermediate flange for changing the position of the shut-off valves
    Oval flange, height 5, 12, 15, 25, 34, 46, 62, 71, 75 or 95 mm
    Other voltages / designs on request
    1)

    Enclosure
    Number of cylinders / Bore / Stroke 4 / 60 mm / 49 mm
    Swept volume 554 cm³
    Displacement (1450/3000 ¹/min) 48,30 / 99,90 m³/h
    Mass moment of inertia 0,0043 kgm²
    Weight 33 kg
    Permissible range of rotation speeds 500 - 3500 ¹/min
    Max. permissible pressure (LP/HP) 1) 19 / 28 bar
    Connection suction line SV 35 mm - 1 3/8 "
    Connection discharge line DV 28 mm - 1 1/8 "
    Lubrication Oil pump
    Oil type R134a, R404A, R407C/F, R507 FUCHS Reniso Triton SE 55
    Oil type R22 FUCHS Reniso SP 46
    Oil charge 2,0 Ltr.
    Dimensions
    Length / Width / Height    		 385 / 325 / 370 mm
    1) LP = Low pressure
    HP = High pressure
    RM0.00
    Quick Find : 4Add to cart
  • GEA Vehicle compressor FK for bus and train air-conditioning FK40/560 N

    GEA Vehicle compressor FK for bus and train air-conditioning FK40/560 N

    Scope of supply
    Open piston compressor in a light alumininium construction,
    with suction and discharge valves
    Oil pump
    Four cylinder, cylinder arrangement in V
    Seat front bearing flange
    Integrated oil collecting system for the shaft seal, leak oil drain hose design
    Fastening possibility for electromagnetic clutch
    K Design
    Oil charge:
    FK: FUCHS Reniso SP 46
    FKX: FUCHS Reniso Triton SE 55
    Two sight glasses
    Decompression valve
    Inert gas charge
    Accessories
    Capacity regulator 24 V DC
    1 capacity regulator = 50% residual capacity
    Electromagnetic clutch 24 V DC LA 16.028, Ø 153 mm, 2 x SPB, 60 W 1)
    Flywheel:
    Outer diameter: 210 [mm]
    V-belt profile: SPA DIN 7753
    Number of grooves: 3
    Weight: 11.6 [kg] 1)
    Oil sump heater 24 V DC, 80 W
    Thermal protection thermostat (bimetal tracer)
    Intermediate flange for changing the position of the shut-off valves
    Oval flange, height 5, 12, 15, 25, 34, 46, 62, 71, 75 or 95 mm
    Other voltages / designs on request
    1)

    Enclosure
    Number of cylinders / Bore / Stroke 4 / 60 mm / 49 mm
    Swept volume 554 cm³
    Displacement (1450/3000 ¹/min) 48,30 / 99,90 m³/h
    Mass moment of inertia 0,0043 kgm²
    Weight 33 kg
    Permissible range of rotation speeds 500 - 3500 ¹/min
    Max. permissible pressure (LP/HP) 1) 19 / 28 bar
    Connection suction line SV 35 mm - 1 3/8 "
    Connection discharge line DV 28 mm - 1 1/8 "
    Lubrication Oil pump
    Oil type R134a, R404A, R407C/F, R507 FUCHS Reniso Triton SE 55
    Oil type R22 FUCHS Reniso SP 46
    Oil charge 2,0 Ltr.
    Dimensions
    Length / Width / Height    		 385 / 325 / 370 mm
    1) LP = Low pressure
    HP = High pressure
    RM0.00
    Quick Find : 6Add to cart
  • GEA Vehicle compressor FK for bus and train air-conditioning FK40/655 K

    GEA Vehicle compressor FK for bus and train air-conditioning FK40/655 K

    Scope of supply
    Open piston compressor in a light alumininium construction,
    with suction and discharge valves
    Oil pump
    Four cylinder, cylinder arrangement in V
    Seat front bearing flange
    Integrated oil collecting system for the shaft seal, leak oil drain hose design
    Fastening possibility for electromagnetic clutch
    N Design
    Oil charge:
    FK: FUCHS Reniso SP 46
    FKX: FUCHS Reniso Triton SE 55
    Two sight glasses
    Decompression valve
    Inert gas charge
    Accessories
    Capacity regulator 24 V DC
    1 capacity regulator = 50% residual capacity
    Electromagnetic clutch 24 V DC LA 16.028, Ø 153 mm, 2 x SPB, 60 W 1)
    Flywheel:
    Outer diameter: 210 [mm]
    V-belt profile: SPA DIN 7753
    Number of grooves: 3
    Weight: 11.6 [kg] 1)
    Oil sump heater 24 V DC, 80 W 2)
    Thermal protection thermostat (bimetal tracer)
    Intermediate flange for changing the position of the shut-off valves
    Oval flange, height 5, 12, 15, 25, 34, 46, 62, 71, 75 or 95 mm 3)
    Other voltages / designs on request
    1) Enclosure
    2) Other voltages on request
    3)

    Other designs on request
    Number of cylinders / Bore / Stroke 4 / 65 mm / 49 mm
    Swept volume 650 cm³
    Displacement (1450/3000 ¹/min) 56,60 / 117,10 m³/h
    Mass moment of inertia 0,0043 kgm²
    Weight 31 kg
    Permissible range of rotation speeds R134a 1) 500 - 3000 ¹/min
    Max. permissible pressure (LP/HP) 2) 19 / 28 bar
    Connection suction line SV 35 mm - 1 3/8 "
    Connection discharge line DV 35 mm - 1 3/8 "
    Lubrication Oil pump
    Oil type R134a, R404A, R407C/F, R507 FUCHS Reniso Triton SE 55
    Oil type R22 FUCHS Reniso SP 46
    Oil charge 2,0 Ltr.
    Dimensions
    Length / Width / Height    		 385 / 320 / 370 mm
    1) Max. rotation speed 3500 ¹/min
    2) LP = Low pressure
    HP = High pressure
    RM0.00
    Quick Find : 1Add to cart

Mag.Clutch Pully

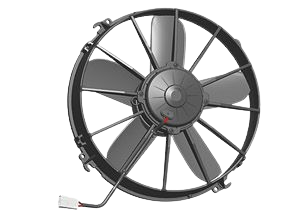

Condenser Motor

  • SPAL Axial Fans - 24 V VA01-BP70/VLL-36S

    SPAL Axial Fans - 24 V VA01-BP70/VLL-36S

    Axial Fans - 24 V

    VA01-BP70/LL-36S
    305
    Product features
    Waterproof motor, IP68
    Long Life
    VLL Version  (for OEM applications only)
    Waterproof connectors
    Accessories : all the fixing kits
    Standard feature
    Available upon request


    Performance chart
    Static pressure Airflow Current input Airflow Static pressure
    mm H20 m³/h A CFM in H2O
    0,0 2760,0 7,1 1628,0 0,0
    5,0 2510,0 7,5 1481,0 0,2
    10,0 2230,0 8,0 1316,0 0,4
    15,0 1920,0 8,4 1133,0 0,6
    20,0 1470,0 8,6 867,0 0,8
    25,0 1010,0 8,9 596,0 1,0
    30,0 620,0 9,2 366,0 1,2
    35,0 310,0 9,7 183,0 1,4
    40,0 0,0 10,5 0,0 1,6
    Test voltage 26 V d.c.
    RM0.00
    Quick Find : 12SKU : VA01-BP70/VLL-36SAdd to cart
  • SPAL Axial Fans - 24 V VA01-BP70/VLL-66A

    SPAL Axial Fans - 24 V VA01-BP70/VLL-66A

    Axial Fans - 24 V

    VA01-BP70/LL-66A
    305
    Product features
    Waterproof motor, IP68
    Long Life
    Low Noise
    Accessories : all the fixing kits
    VLL Version  (for OEM applications only)
    Waterproof connectors
    Standard feature
    Available upon request


    Performance chart
    Static pressure Airflow Current input Airflow Static pressure
    mm H20 m³/h A CFM in H2O
    0,0 2650,0 7,1 1564,0 0,0
    5,0 2390,0 7,5 1410,0 0,2
    10,0 2070,0 8,0 1221,0 0,4
    15,0 1700,0 8,2 1003,0 0,6
    20,0 1120,0 8,4 661,0 0,8
    25,0 700,0 8,9 413,0 1,0
    30,0 420,0 9,6 248,0 1,2
    35,0 210,0 10,5 124,0 1,4
    40,0 0,0 11,6 0,0 1,6
    Test voltage 26 V d.c.
    RM0.00
    Quick Find : 11SKU : VA01-BP70/VLL-66AAdd to cart
  • SPAL Axial Fans - 24 V VA01-BP70/VLL-79S

    SPAL Axial Fans - 24 V VA01-BP70/VLL-79S

    Axial Fans - 24 V

    VA01-BP70/LL-79S
    305
    Product features
    Waterproof motor, IP68
    Low Noise
    Long Life
    Waterproof connectors
    VLL Version  (for OEM applications only)
    Accessories : all the fixing kits
    Standard feature
    Available upon request


    Performance chart
    Static pressure Airflow Current input Airflow Static pressure
    mm H20 m³/h A CFM in H2O
    0,0 2850,0 8,5 1682,0 0,0
    5,0 2630,0 8,9 1552,0 0,2
    10,0 2360,0 9,3 1392,0 0,4
    15,0 2000,0 9,5 1180,0 0,6
    20,0 1550,0 9,8 915,0 0,8
    25,0 1020,0 10,0 602,0 1,0
    30,0 620,0 10,3 366,0 1,2
    35,0 370,0 11,0 218,0 1,4
    40,0 90,0 12,0 53,0 1,6
    45,0 0,0 12,4 0,0 1,8
    Test voltage 26 V d.c.
    RM0.00
    Quick Find : 10SKU : VA01-BP70/VLL-79SAdd to cart
